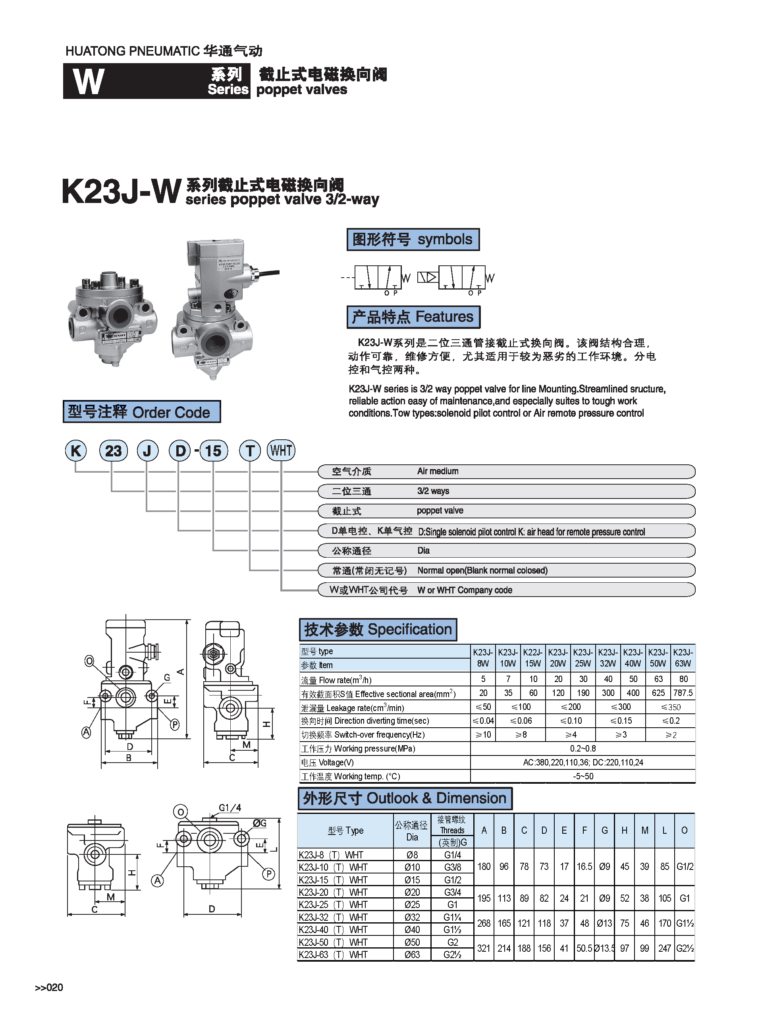

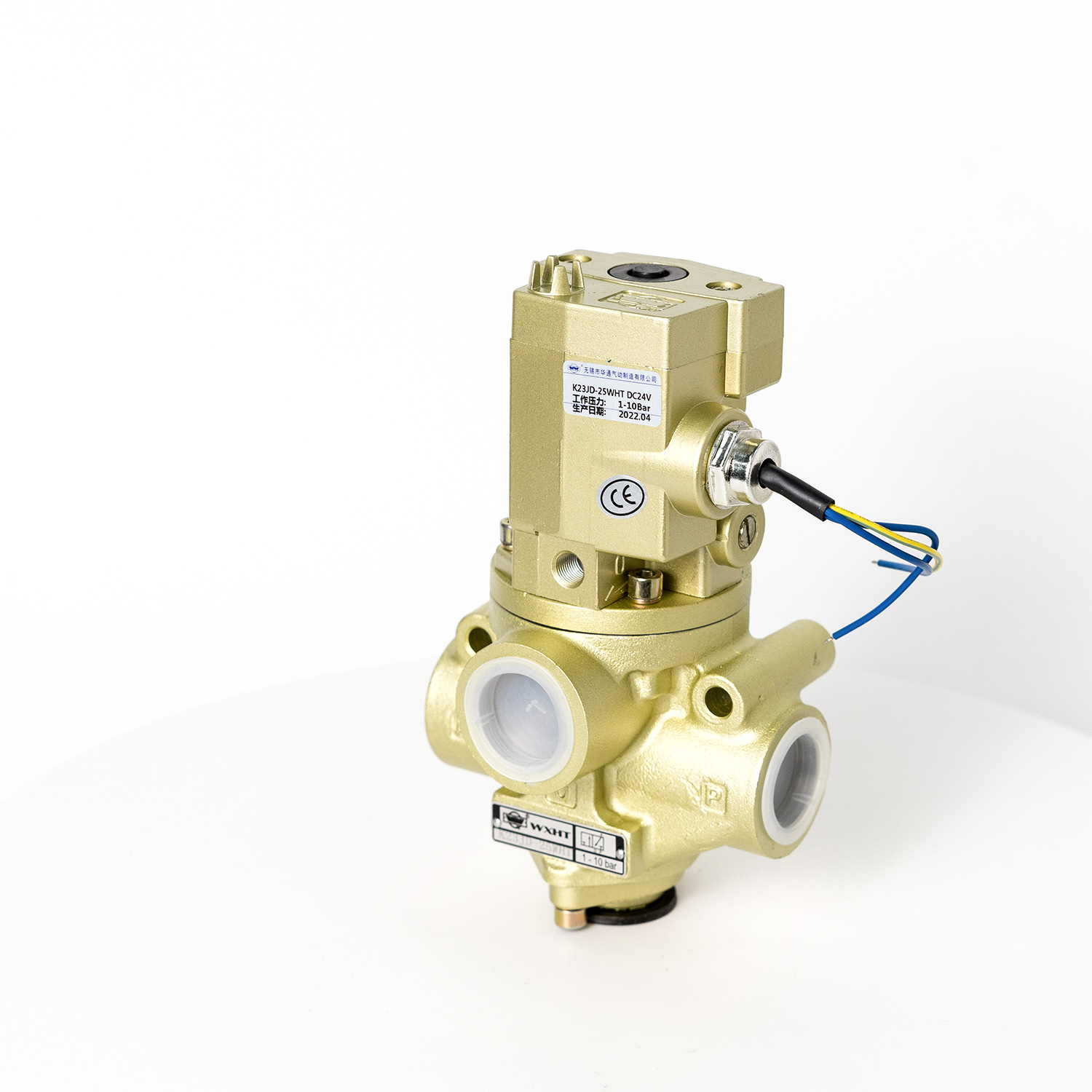

The K23JD-WHT series is a high-flow, high-reliability, two-position, three-way, single-electrically controlled shut-off pneumatic solenoid valve. Nominal diameter G1/4-G2 1/2.
Key Features:
- High-flow shut-off structure
- Sensitive switching and rapid response
- Rugged and durable, suitable for harsh environment
- Low leakage, safe and controllable
- Multiple voltage options: Standard voltages AC220V/380V, DC24V, etc.
Description
Features
| Working medium | compressed air |
| Working temp | -5~50℃ |
| Working pressure | 0.1~1 MPa |
